API 205L Direct Input

API 205L Direct Input

kr.5.662,50 (kr.4.530,00 ex. moms)

Available on backorder

SKU: 23252 Categories: , Brand:

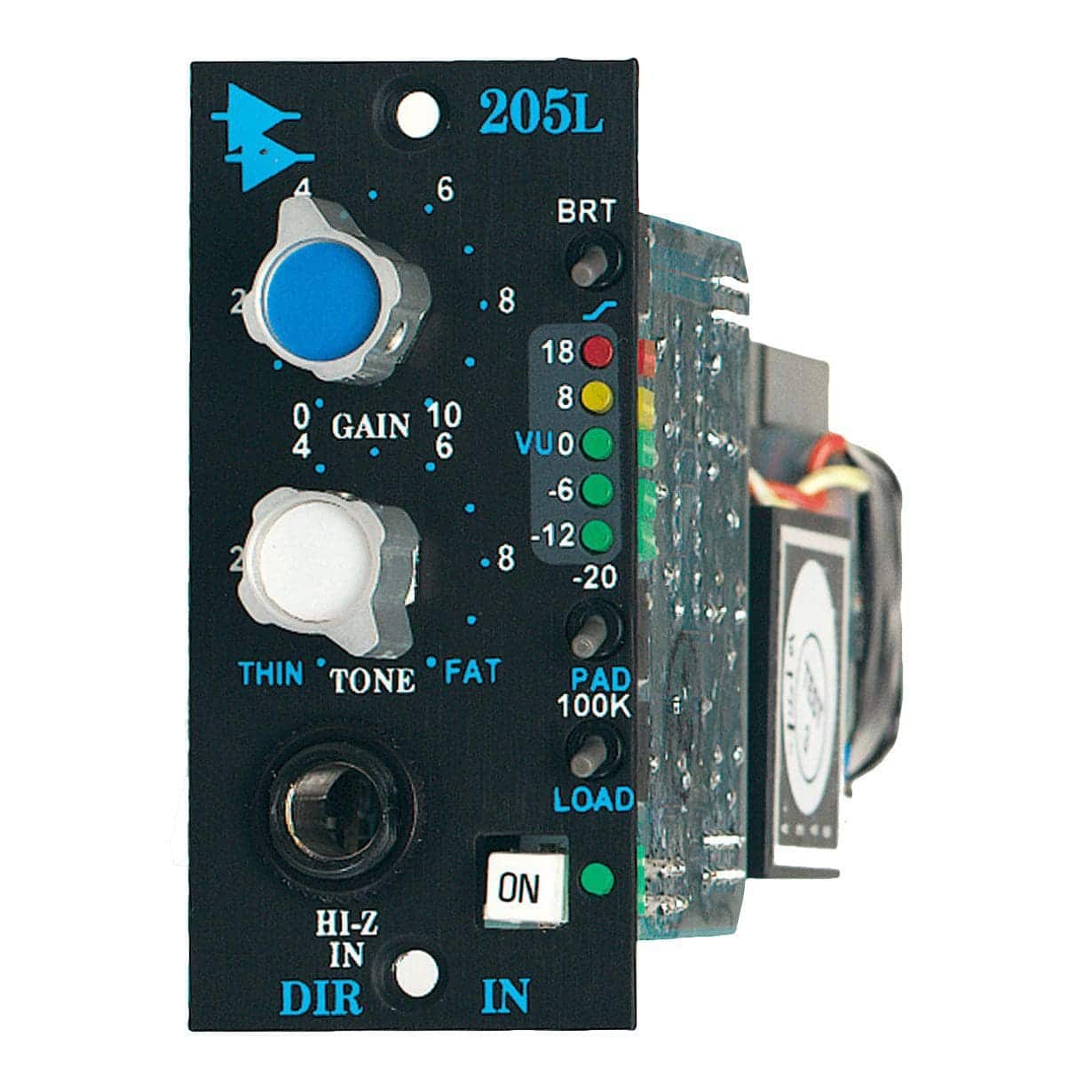

API 205L Direct Input – 500 Series Instrument DI Module

The API 205L is a high-quality direct input (DI) module designed specifically for the 500 Series format. Built to API’s renowned standards and using an all-discrete analog design, the 205L is the perfect front-end solution for connecting instruments such as electric guitar, bass, and keyboards directly into your recording chain — all while maintaining the tone and presence of a high-end tube amp.

The Hi-Z input provides optimal impedance for instrument-level signals, while the wide-range GAIN control allows for precise level matching. The API 205L also features a unique Thin/Fat tone control that helps shape the low-end response to reduce muddiness or add body depending on your source. The dedicated BRIGHT switch boosts upper frequencies for enhanced clarity and presence.

A 100 kOhm LOAD switch changes the input impedance, subtly altering the instrument’s tone for more flexibility during tracking. A built-in 20 dB pad is included to accommodate high-output instruments or active pickups, and the front-panel 5-segment LED meter makes it easy to monitor output levels.

The API 205L features a transformer-coupled output capable of driving levels up to +28 dBm, ensuring clean, punchy, analog warmth in any recording scenario. Designed for use in API’s 500 Series racks or compatible systems, it’s an essential tool for capturing the true character of your instruments with clarity and control.

Key Features:

  • Wide-range GAIN control for precise level adjustment
  • Hi-Z input designed to behave like a high-end tube amp
  • Thin ↔ Fat tone control to shape low-end response
  • BRIGHT switch boosts high-end presence
  • 20 dB PAD for hot input signals
  • 100 kOhm LOAD switch to change instrument tone
  • 5-segment LED output level meter
  • Transformer-coupled output, up to +28 dBm
  • All-discrete analog design with API quality
  • Compatible with all standard 500 Series racks

Whether you’re recording bass, guitar, or keyboards, the API 205L Direct Input gives you unmatched tonal control, analog richness, and studio-grade performance — all in a compact and portable 500 Series module.
