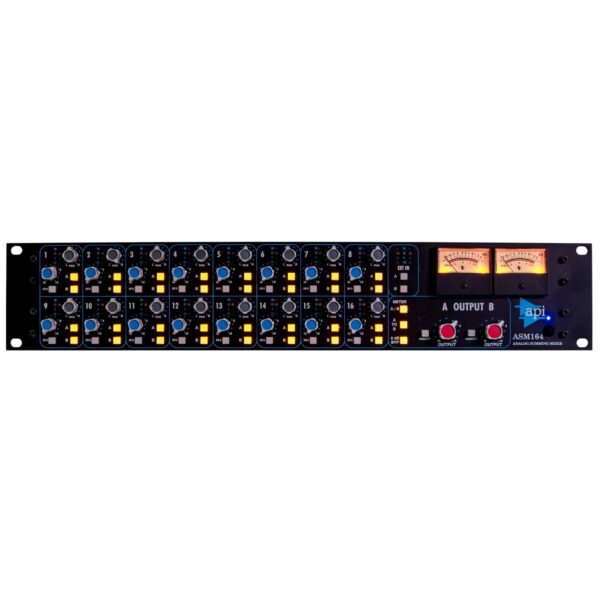

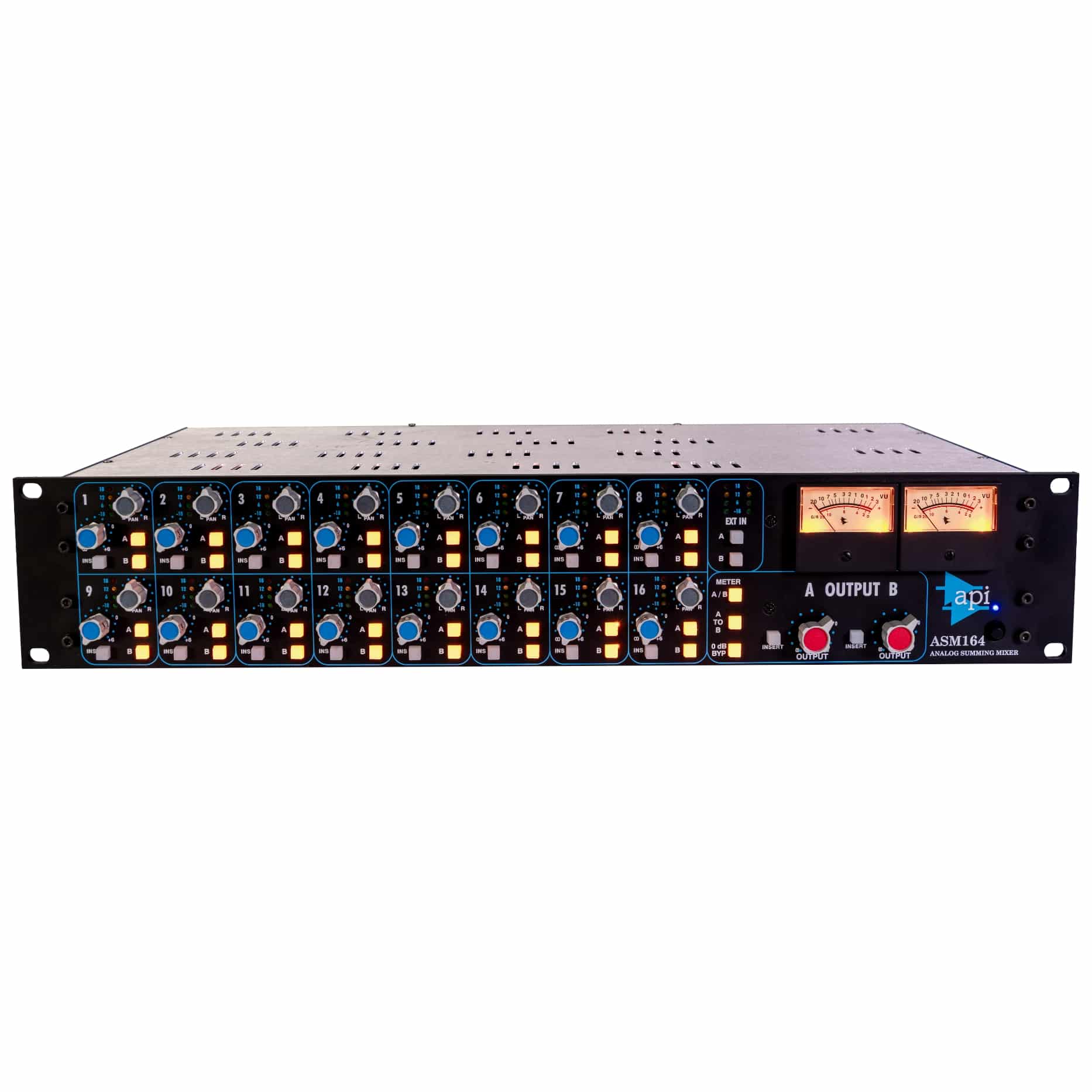

API ASM164 16-Channel Analog Summing Mixer
The API ASM164 is a professional-grade 16-channel analog summing mixer that brings the classic API console sound to a compact, rackmount format. Inspired by the summing section of API’s renowned THE BOX® console, the ASM164 is designed to deliver world-class summing performance for home studios, professional project rooms, and commercial production environments.
Built on API’s legendary discrete analog architecture, the ASM164 features proprietary API 2510 input op amps, 2520 output op amps, and transformer-balanced outputs, ensuring your mixes benefit from the punch, warmth, and clarity that define the API sound. With 16 balanced line-level inputs via DB-25 connectors, the ASM164 offers a versatile front-end for hybrid mixing workflows.
Flexible Summing with Dual Mix Buses
Each of the 16 channels can be assigned to Mix-A, Mix-B, or both, allowing flexible routing and parallel processing. Every channel includes a continuously variable pan control (with center detent), 31-step detented level control, and insert send/return for integrating outboard gear. The global 0dB bypass enables a direct unity-gain mix for reference or recall-friendly setups.
Additional features include a balanced stereo external input assignable to either mix bus, 4-segment LED meters for each channel, and high-quality VU metering on the stereo outputs. The ASM164 offers comprehensive rear-panel connectivity and is powered by an external supply for reduced noise and increased reliability.
Key Features:
- 16-channel analog summing mixer in a 19” rackmount format
- Based on the summing section of API THE BOX® Console
- Balanced, line-level DB-25 connectors for all inputs
- API 2510 input op amps and 2520 output op amps
- Transformer-balanced stereo outputs
- Insert send/return on each channel for external processing
- Continuously variable pan control with center detent
- 31-step detented level controls per channel
- Global 0dB level bypass for all channels
- 4-segment LED level meters on all input channels
- 2 assignable stereo mix buses: Mix-A and Mix-B
- Balanced stereo external input assignable to Mix-A or Mix-B
- VU metering on main stereo outputs
- External power supply included
- API’s 5-year parts and 1-year factory service warranty
The API ASM164 offers the unmistakable API summing sound in a compact and efficient format, making it an ideal addition to any hybrid studio setup that values analog warmth and clarity in the final mix.
