Blackmagic Micro Converter - SDI to HDMI 3G

Blackmagic Micro Converter – HDMI to SDI 3G m. PSU

kr.606,00 (kr.484,80 ex. moms)

In stock (can be backordered)

SKU: 360225 Category: Brand:

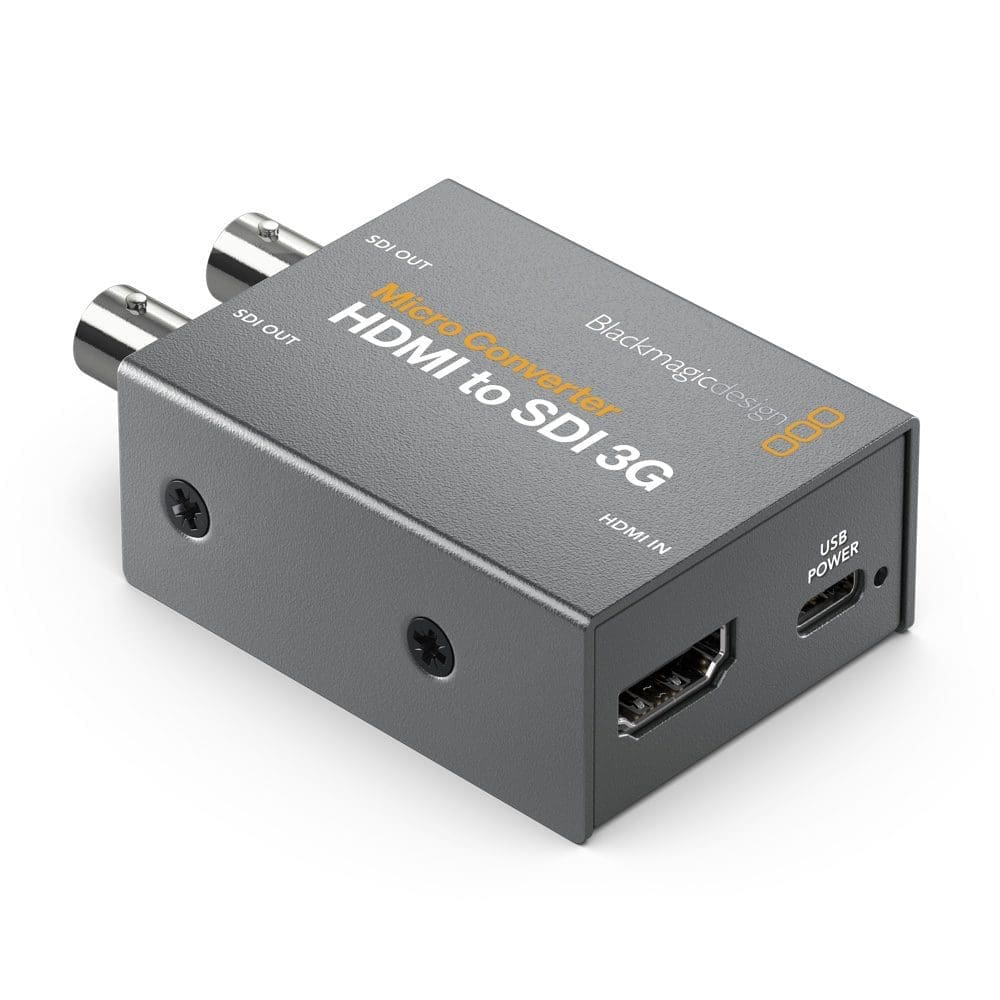

Blackmagic Micro Converter HDMI to SDI 3G with Power Supply – Compact Professional HDMI to SDI Signal Converter

The Blackmagic Micro Converter HDMI to SDI 3G with PSU is a high-quality, ultra-compact video converter that lets you connect HDMI sources such as cameras, computers, or media players to professional SDI-based systems. This version includes a reliable locking power supply with international adapters, ensuring uninterrupted operation in studio and field environments.

Featuring dual SDI outputs, the converter allows for simultaneous signal distribution to two SDI devices. It supports all common SD and HD video formats up to 1080p60, with full compatibility for Level A and Level B 3G-SDI signals. With rugged construction and real-time processing, this converter is perfect for live production, broadcast, AV installations, and streaming workflows.

Key Features:

  • Converts HDMI video signals to professional SDI
  • 2 x 3G-SDI outputs – send signal to two destinations
  • Supports resolutions up to 1080p60
  • Compatible with Level A and Level B 3G-SDI
  • Includes 5V universal power supply with locking connector and adapters
  • Rugged metal housing – ideal for on-set and portable use
  • USB-C port for firmware updates and configuration

Technical Specifications:

  • HDMI Video Input: 1 x HDMI Type A
  • SDI Video Outputs: 2 x 3G-SDI (switchable between Level A and B)
  • HDMI Color Precision: 8, 10, or 12-bit
  • Embedded Audio: 8 channels (HDMI), 16 channels (SDI)
  • Supported Formats: 525i59.94, 625i50, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98 to 1080p60
  • Power: 5V DC via locking PSU or USB-C
  • Dimensions: 76.4 x 45.8 x 24.8 mm
  • Weight: Approx. 122 g

Ideal For:

The HDMI to SDI 3G Micro Converter is perfect for connecting consumer video gear to broadcast systems, routing HDMI cameras to SDI switchers, or integrating computers into professional video workflows. Its dual SDI outputs make it even more versatile in complex setups.

Deliver professional HDMI to SDI conversion with confidence using the Blackmagic Micro Converter HDMI to SDI 3G with PSU.
