Blackmagic Mini Converter Audio to SDI 4K – Professional Audio Embedding for SD, HD, and Ultra HD Workflows

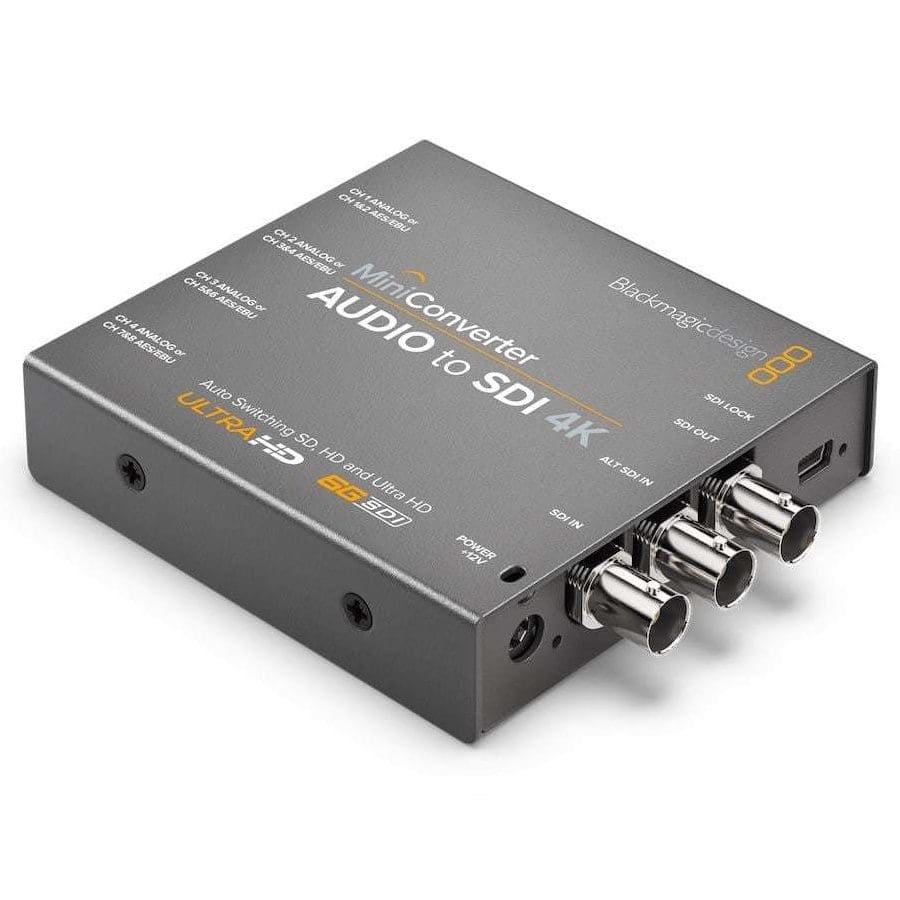

The Blackmagic Mini Converter Audio to SDI 4K is a high-performance audio embedding solution designed for professional video workflows. It allows you to embed up to four channels of analog audio or eight channels of AES/EBU digital audio into any SDI video signal, including 6G-SDI for Ultra HD formats up to 2160p30.

Perfect for live production, post-production, or broadcast installations, this compact converter enables seamless integration of high-quality audio into your SDI infrastructure. With support for SD, HD, 3G, and 6G-SDI standards, it adapts automatically to the input video format for quick and reliable operation.

Key Features:

  • Embed 4 channels of analog or 8 channels of AES/EBU audio into SDI
  • Supports SD, HD, 3G-SDI, and Ultra HD 6G-SDI video formats
  • Auto-detects and matches incoming SDI video resolution and frame rate
  • High-quality 24-bit audio conversion
  • Independent SDI loop-through output
  • Compact, robust metal design
  • Includes 12V universal power supply with locking connector

Technical Specifications:

  • SDI Video Input: 1 x 10-bit SD/HD/3G/6G-SDI
  • SDI Video Output: 2 x 10-bit SD/HD/3G/6G-SDI
  • Analog Audio Input: 4 x XLR (via breakout cable)
  • Digital Audio Input: 2 x AES/EBU (via breakout cable)
  • Supported Video Formats: SD up to 2160p30 Ultra HD
  • Audio Sampling: 24-bit, 48 kHz
  • SDI Compliance: SMPTE 259M, 292M, 424M, 2081
  • Power Supply: 12V DC (locking power connector included)
  • Dimensions: 112 x 92 x 25 mm
  • Weight: Approx. 300 g

Ideal For:

This converter is ideal for broadcast studios, mobile production trucks, and post-production environments where high-quality audio must be embedded into SDI video feeds. It’s an essential tool for professional workflows requiring precise audio/video synchronization and compatibility with Ultra HD standards.

Get seamless audio embedding with the Blackmagic Mini Converter Audio to SDI 4K — the reliable choice for next-generation video production.
