Klevgrand Tomofon

Tomofon is a ground-breaking expressive audio synth. This virtual instrument introduces a new “Audio Model” format, capable of containing thousands of waves extracted from ordinary audio files. These waves – and how they’re structured – lays the ground for how Tomofon generates audio, resulting in a highly flexible and instantly expressive instrument, that on one hand sounds very organic, and on the other like something out of this world. Whether you want to play around with the Audio Model Starter Pack (instruments & voices) and factory presets, or import your own audio to shape your own unique soundscapes – it is fair to say that you are in for a creative journey. With the addition of MPE support in v1.2, the expressiveness is taken even further!

How does it work?

Tomofon converts audio files into a large set of oscillating waves, which then are mapped into pitch zones where each wave represents one layer (a bit similar to how a sampler structures different velocity zones). The main difference is that since each zone is populated with waves instead of ordinary samples, the synth engine can morph between them (both layers and zones). This makes all transitions between zones and layers continuous and seamless. This structure containing these organized wavetables is what we call an Audio Model, and give Tomofon its dynamic properties and characteristic sound.

Illustrated description of the Audio Model concept can be found under “Anatomy” below

Create and share your own unique sounds

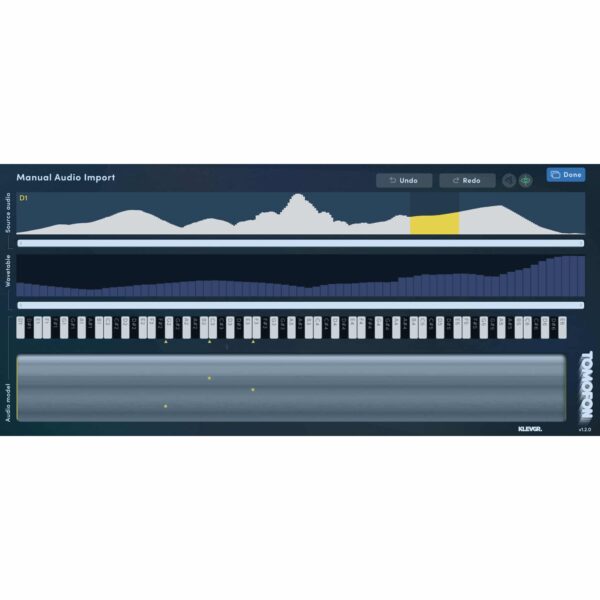

A significant feature of this plug-in is that users can import their own audio files and create new and unique Audio Models. Ordinary audio files (preferably with monophonic content) can easily be imported and distributed into different pitch zones over the keyboard range, either automatically or manually. Doing an automatic import is basically a one-click process which instantly results in a proper playable Audio Model. A manual import gives the user full control of which waves should end up in which pitch zone. Last but not least you can easily share your own created Audio Models with others.

Tomofon comes pre-loaded with a pack of 124 Audio Models based on high quality audio recordings of multiple expressions. These models includes several instrument like strings, vocals, brass, woodwind, guitars and more. Along with these models there are over 180 presets to get you going right away. From there on you can venture further and start creating Audio Models based on your own audio files and experiment on the types of sounds they can grow to be.
