The world’s first programmable analog processor (see below for English)

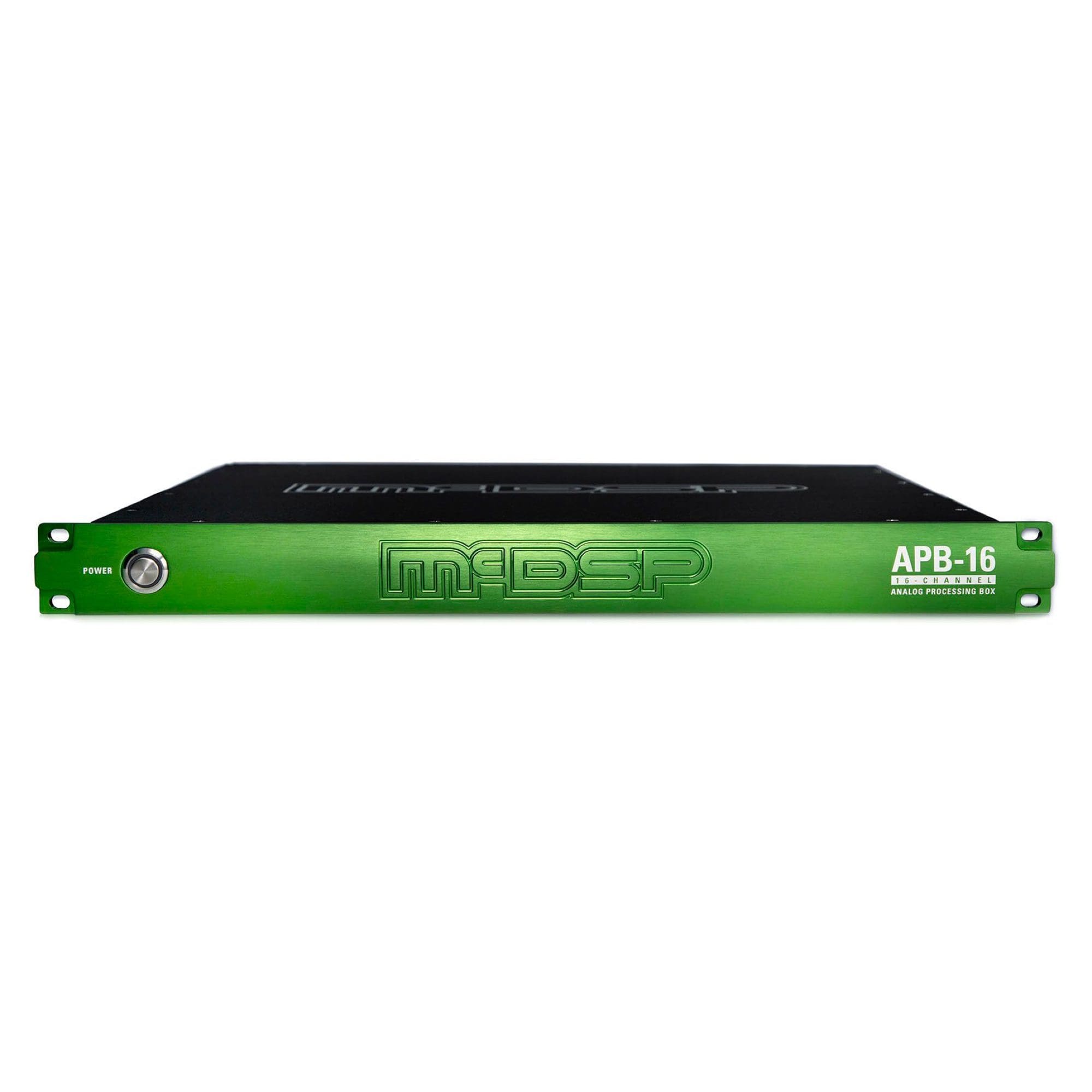

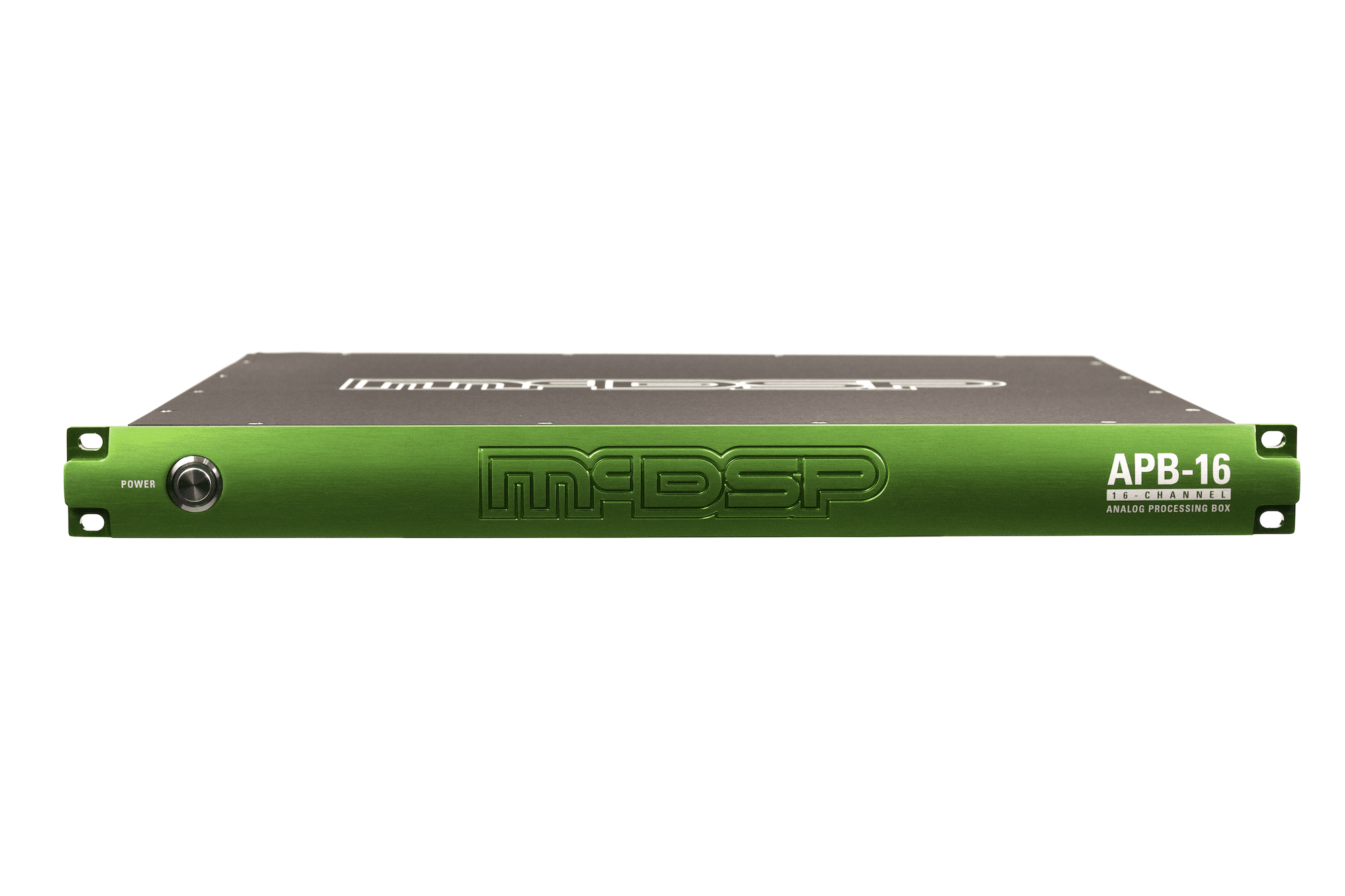

The McDSP APB-16 combines the flexibility of software with the quality and accuracy of premium analog processing. All processing takes place in the analog domain but is controlled directly from a plug-in with all the advantages associated with this such as full automation and recall of presets etc. An APB plug-in sends the audio signal together with a controller signal via Thunderbolt to the APB- 16 the hardware. Here, the sound is processed with the algorithm defined by the controller signal and all parameters in the analogue domain, after which the signal is digitally sent back to your DAW. Supports AAX, AU and VST3 and can be used with Pro Tools, Logic and Cubase. WORLD’S FIRST PROGRAMMABLE ANALOG PROCESSOR
The McDSP Analog Processing Box (APB) combines the flexibility of software with the fidelity of premium analog processing. Each channel can be controlled by an AAX, AU or VST3 plug-in giving true digital workflow with genuine analog performance. Processing options include compressors, mastering limiters, transient enhancement devices, multi-channel and multi-band applications, and so much more… we’re only getting started. HARDWARE

• Programmable analog processing
• Premium analogue components
• Multiple analog saturation circuits
• 32-bit DAC and ADC
• Thunderbolt 2, 3 and 4 compatible
• McDSP patented technology

SOFTWARE

• APB-ready software plug-in bundle included
• Sample accurate automation
• Full session recall and preset action

PLUG-INS

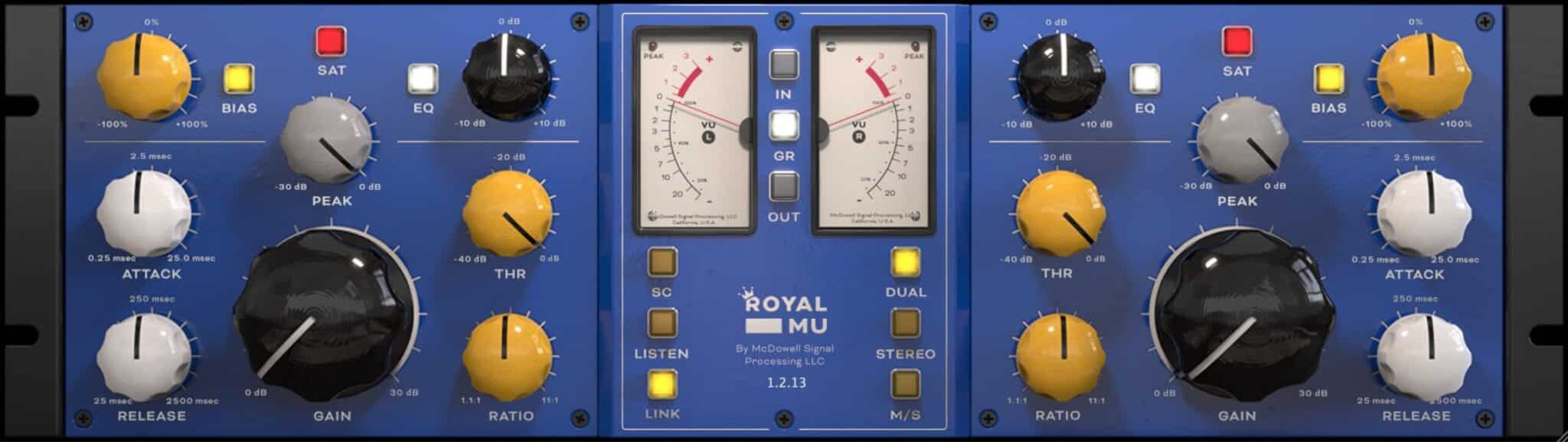

The APB-16 comes with a collection of APB plug-ins to route audio to the APB hardware and control the analog circuitry within. The user simply operates the APB plug-in like any other plug-in, but processing is done in the analog domain. Settings can be saved as a preset, plug-ins can be recalled with a session, and parameters can even be automated with sample level accuracy. APB plug-ins provide true digital workflow with genuine analog performance. ROYAL MU The Royal Mu is a dual-channel compressor and limiter. Features include analog biasing and saturation, mid/side processing, equalization, and a full featured analog compressor and analog limiter. The Royal Mu offers independent (or linked) control of the left/right (or mid/side) channels.

ROYAL Q The Royal Q is a dual-channel 4-band equalizer featuring parametric and shelving EQ, mid/side processing, and trim controls. The Royal Q equalization is complimented by a custom analog section for a truly unique hybrid processor. The Royal Q offers independent (or linked) control of the left/right (or mid/side) channels.

MC-3 The MC-3 Multi-band Compressor is the world’s first fully automated analog multi-band compressor. The matched and calibrated analog channels of the APB hardware make the MC-3 one of the most precise analog multi-band compressors available. Analog saturation control is also available per band. All MC-3 parameters are automatable and can be saved as a preset for instant session recall.

MOO X MIXER The Moo X mixer plug-in is the world’s first fully automated hybrid mixing console under total software control. Session recall is instant, and all mixer controls can be automated or saved as a preset. Features include channel equalization, analog compression and saturation, and a master section with stereo analog compression and saturation.

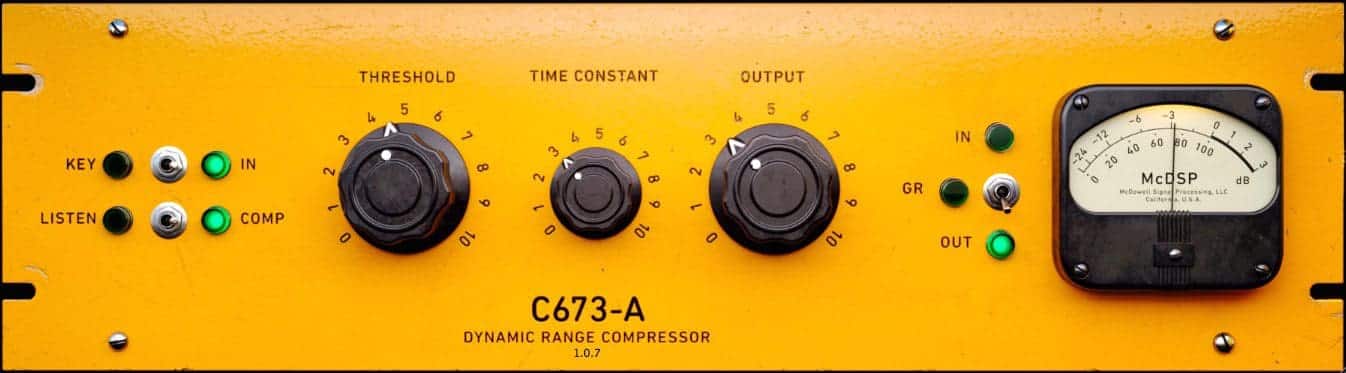

C673-A
DYNAMIC RANGE COMPRESSOR
The C673-A served as the initial prototype for the concept of the world’s first programmable analog processor. Based on McDSP’s C670 and C671 modules from the McDSP 6000 series plug-ins, the C673-A model pushes the envelope further with all analog dynamics processing and a custom saturation circuit.

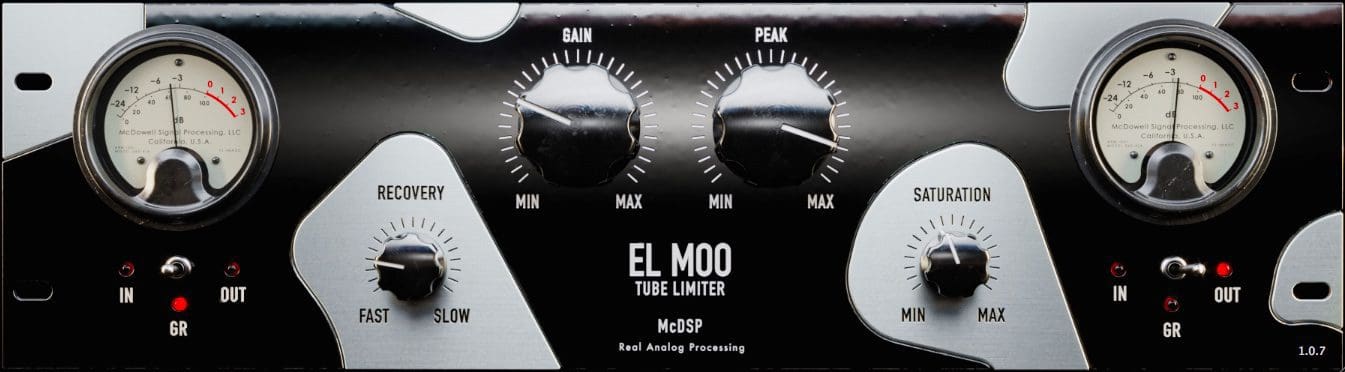

EL MOO
TUBE LIMITS
One of two all-analog limiters in the APB plug-in lineup, the El Moo leverages the same design used in the MooTube compressor. An adjustable all-analog saturation stage with user control makes the El Moo an interesting choice as a sonic leveler.

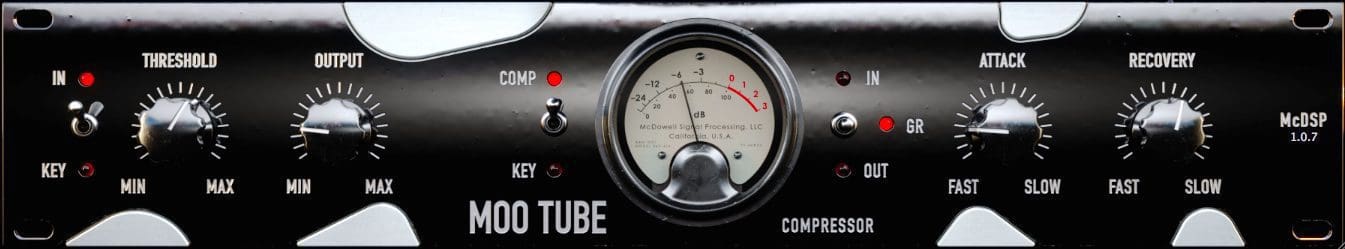

MOO TUBE
COMPRESSOR
The MooTube Compressor is the capstone of the collection of McDSP tube-based compression algorithms. Combining decades of software-side modeling experience with the world’s first programmable analog processor, the MooTube delivers a soft touch to anything that goes through it.

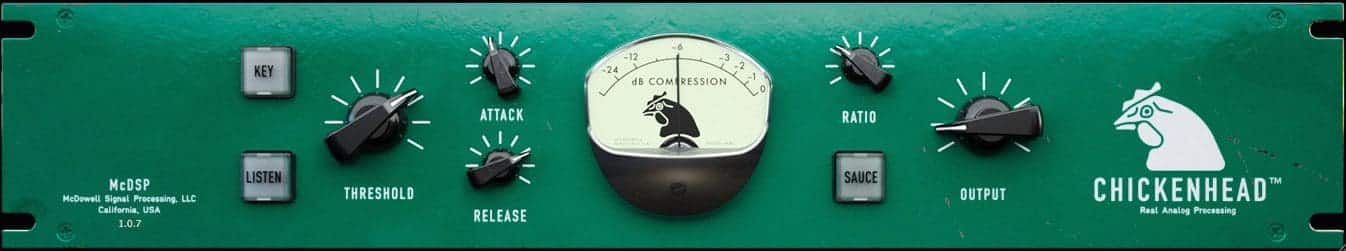

CHICKENHEAD
COMPRESSOR
It may look familiar to some, but under the hood the ChickenHead is a completely unique processor on a completely unique platform. McDSP engineering sought to leverage the high end analog components and most aggressive saturation circuit in the APB hardware to create a compressor with attitude. If you are looking for the rooster in the hen house of dynamic range processors, the ChickenHead is it.

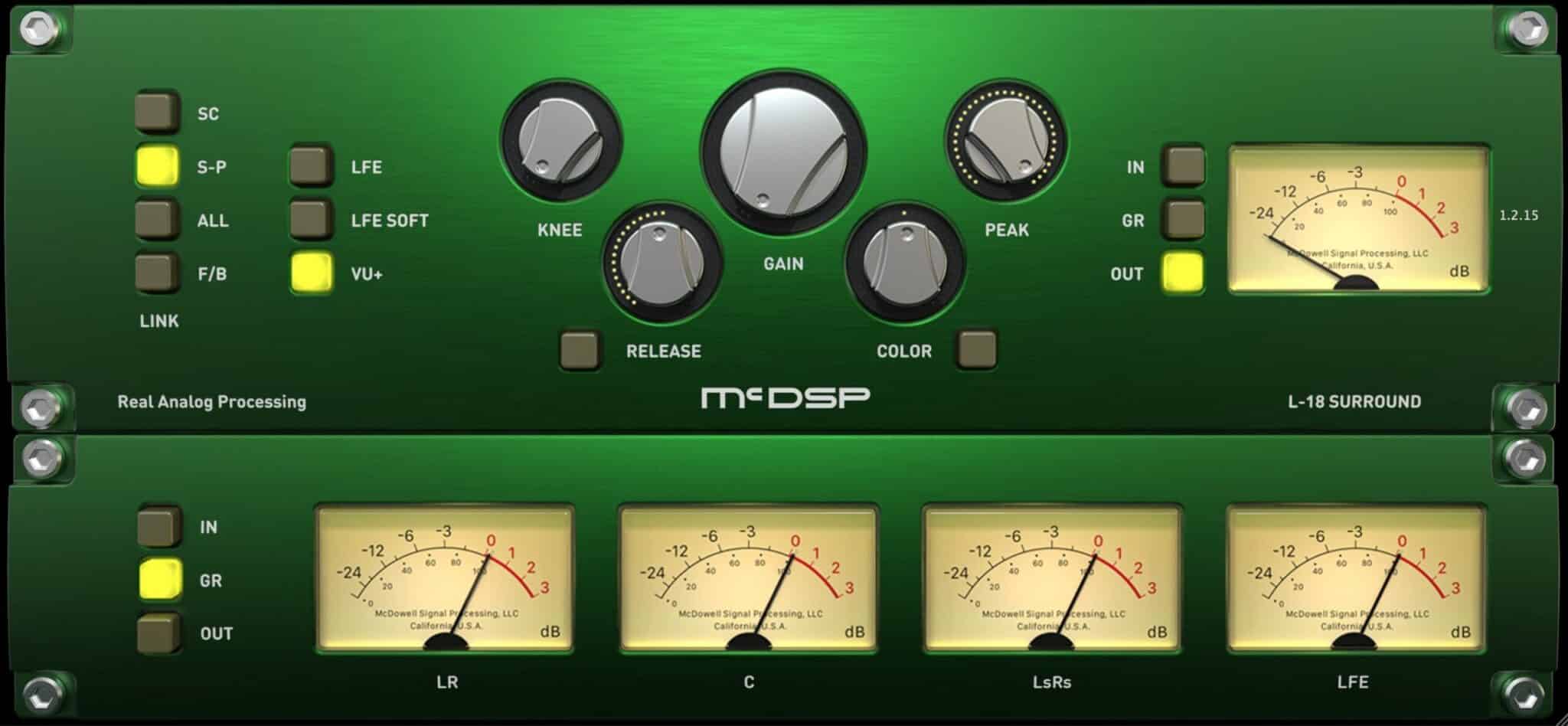

L-18
LIMITS
The L-18 is designed to be a pristine all-analog limiter, useful for a variety of mixing styles. But if the track needs a touch up, a Color control gives some subtle tone shaping options.

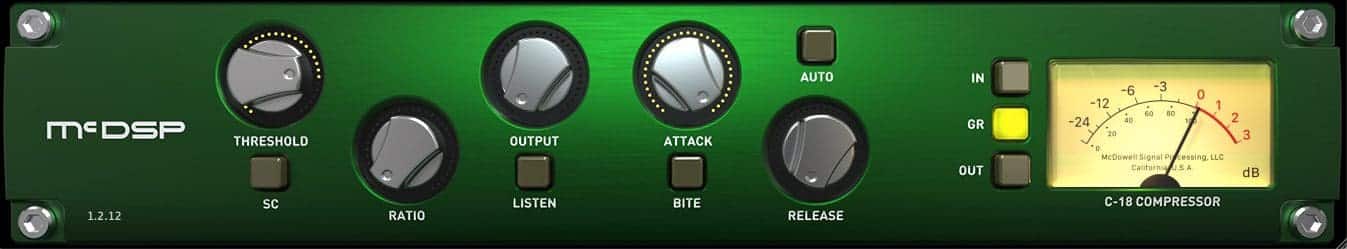

C-18
COMPRESSOR
The C-18 compressor, like the L-18 limiter, is designed to be a pristine, green, audio machine. Tribute is paid to the first McDSP dynamics plug-in, CompressorBank, with an all-analog version of the unique BITE control, and an advanced version of the AUTO feature for signal level dependent attack and release times. The C-18 can be a straight up utility processor, or introduce some new and unique twists to any track.

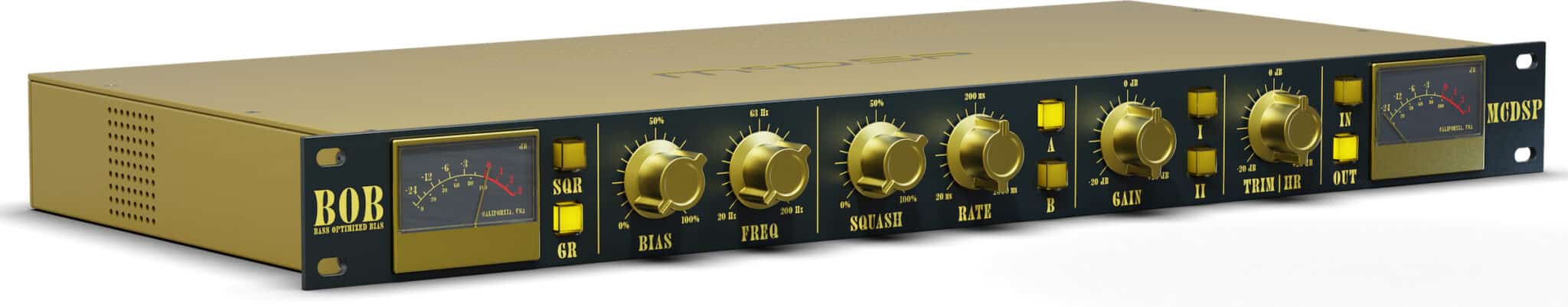

BOB Bass Optimized Bias The BOB APB plug-in is a digital analog hybrid processor. Low frequencies are boosted in the same way as the original BOB module from the 6060 Ultimate Module collection. All original BOB module controls are in the BOB APB plug-in – Bias, Frequency, Squash, Rate, and Bias Modes A and B. A new two stage analog signal path in the BOB APB plug-in further enhances the original bass optimized bias , using three new controls – Gain, Trim/HR (Headroom), and Analog Modes I and II. Metering of the overall gain reduction, Squash gain reduction, input, and output, is shown via two VU style meters on the far left and right of the user interface.

CONNECTIONS
IN THE BACK
An APB plug-in takes the input audio signal, combines it with a control signal, and sends both along a Thunderbolt connection to an APB hardware unit for processing. The control signal sets up the analog components to do the selected algorithm with all the parameter values, and the audio signal is processed in the analog domain, and then converted back to the digital domain, and appears at the output of the APB plug-in back inside the Pro Tools session.
