For over six decades, audio transformers have been the bedrock of Mr. Rupert Neve’s audio circuit design philosophy.

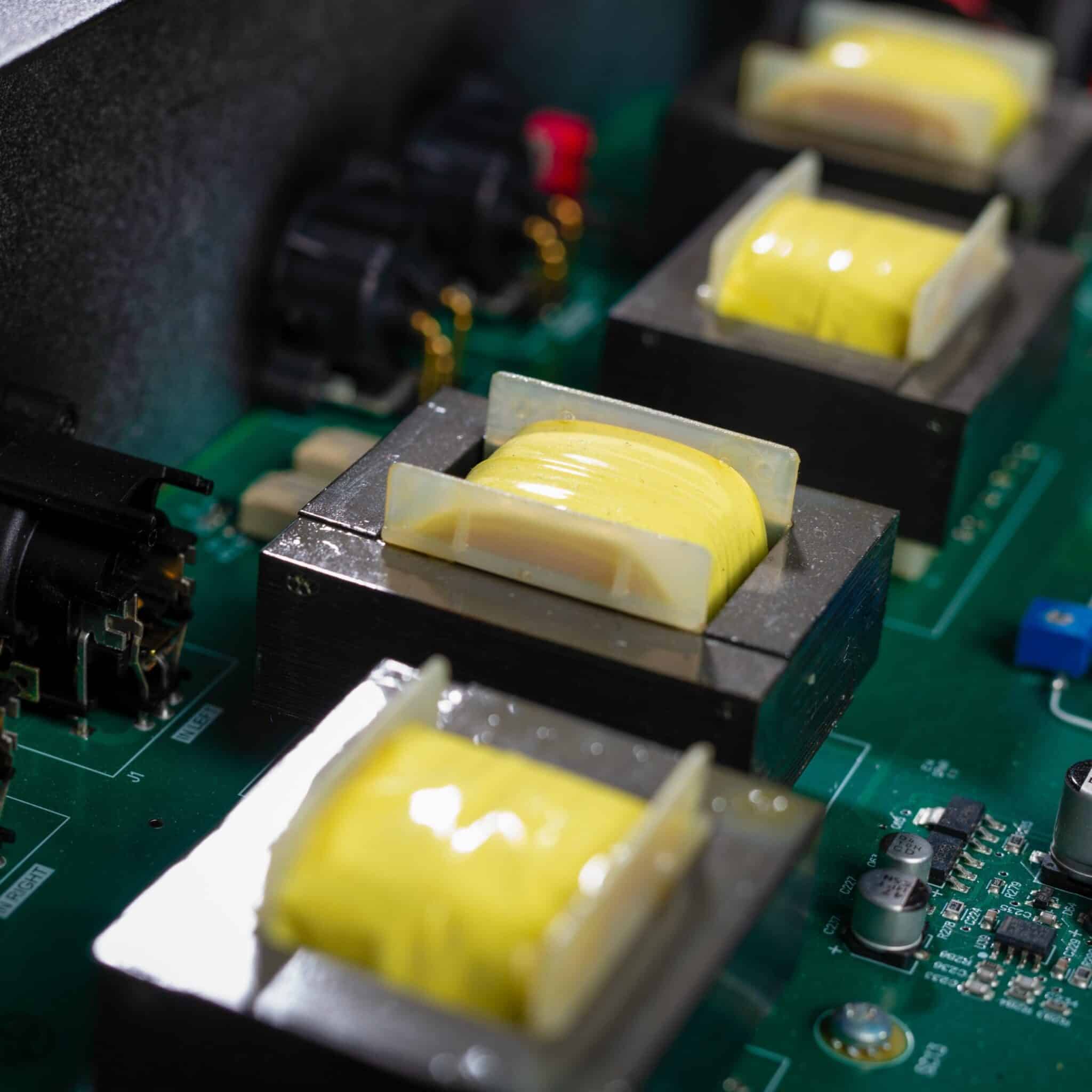

Rupert Neve’s audio circuit design philosophy – and Rupert Neve Designs’ bespoke transformers are an integral part of virtually every RND product.

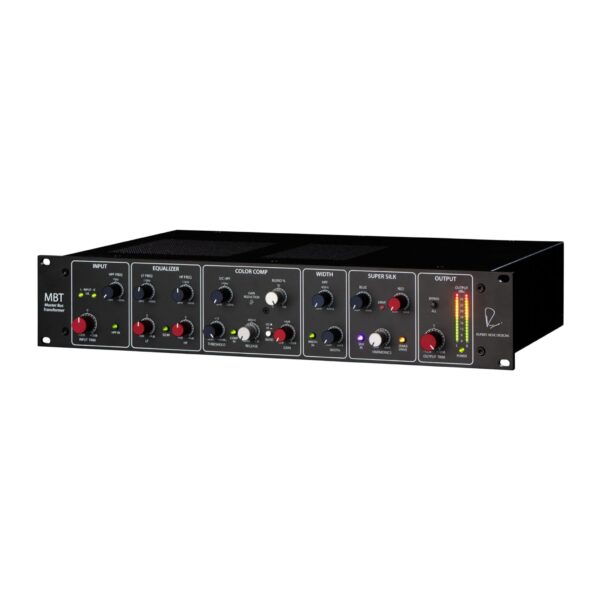

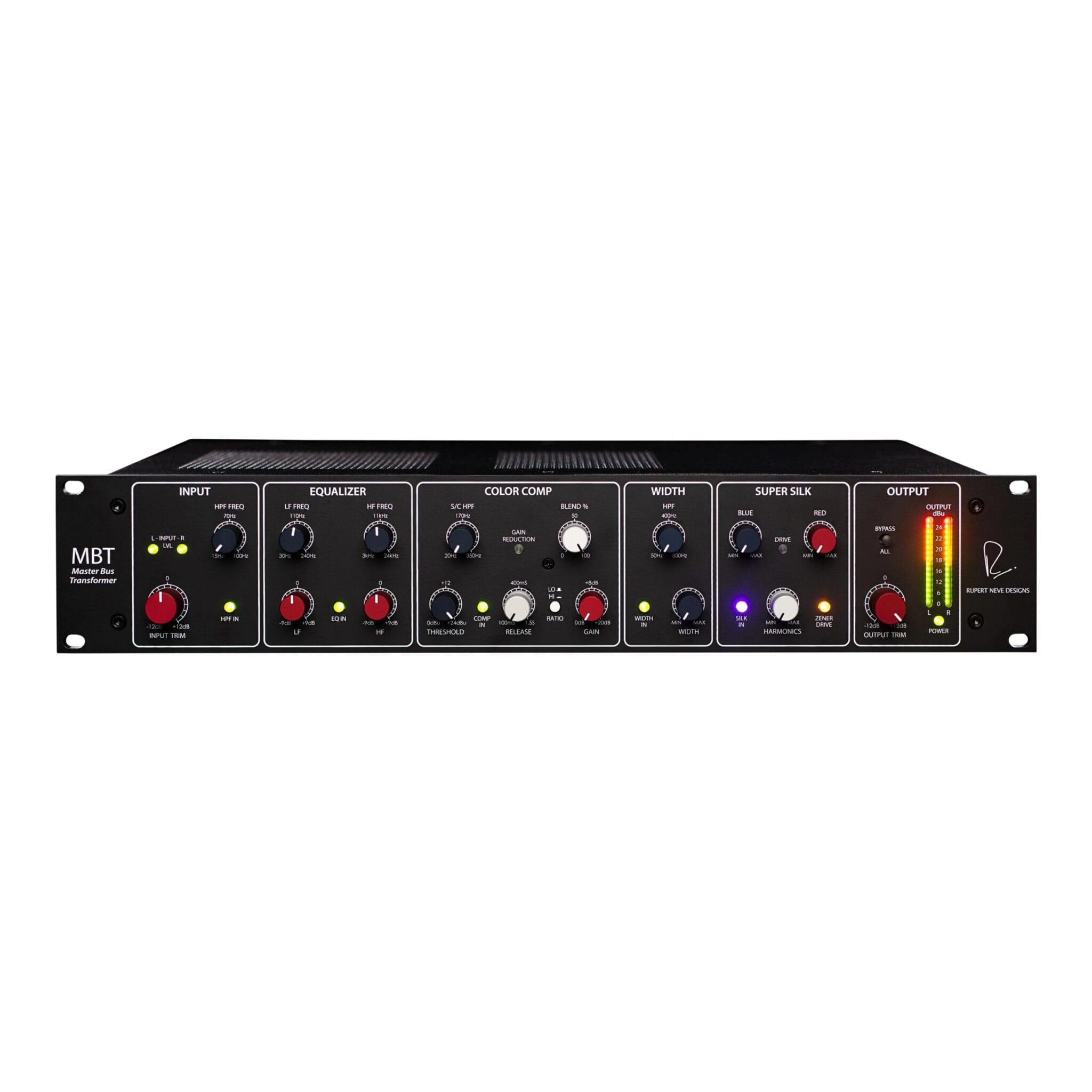

Packed with these transformers, the MBT provides an incredible array of flavorful options designed to sweeten, enhance, drive, widen, and utterly transform source material, making it the ultimate tool for musical coloration.
Equally at home on a full mix, groups, stems or individual sources, the MBT pairs undeniably legendary tonal quality with an immensely flexible set of controls to shape your sound.

Create Tonal Magic with the HPF & Shelf EQ
First in line is a smooth high pass filter with a fully variable frequency selection control.
The HPF extends from 100Hz all the way down to 15Hz, an especially helpful area to manage on a full mix that needs to be as loud as possible.
Next up is the all-new 2-band Shelf EQ section – with 3 octave ranges, gentle slopes and minimal phase shifts, this EQ was created with an emphasis on simplicity and elegance.
This smooth & musical EQ is excellent at providing just the right amount of tonal enhancement – especially when it is interacting with the other sections of the MBT.
Each band has +/- 9dB of gain control, with the LF EQ corner frequency variable from 30Hz to 240Hz and the HF EQ corner frequency variable from 3kHz to 24kHz.
The LF band is excellent at either taming or accentuating low-end to give source material an exacting amount of weight and power.
The HF band provides a wide range of corner frequencies to choose from, allowing adjustments to be made from the upper midrange all the way up to the very top end, giving tracks extra shine and clarity.
One exciting aspect of using the MBT is discovering how the different sections can interact with each other.
Sometimes the EQ can be dialed in first, other times it can be left alone until the other sections are dialed in.
One thing is certain: the MBT encourages experimentation at every turn.

Breathe In New Life with the Color Comp
With an all-new optical compressor design, the Color Comp excels at accentuating the non-linear distortion and “colorful” characteristics of the Opto cell to bring source material a new sense of life and depth.
The compressor ratio can be set to a low (2:1) ratio for subtle & smooth compression or high (5:1) for much more dramatic behavior.
The variable high pass side chain filter removes the low frequencies from the compressor side chain circuit, allowing low-end information to pass through the compressor untouched while the compressor focuses on the rest of the signal.
With a sweepable range from 20Hz all the way up to 350Hz, this is a highly flexible tonal shaping control providing the ability to leave the low end intact while taming or squashing the rest of the source material as needed.
The Color Comp also contains a Blend control, making it easy to use the compression circuit in parallel with the uncompressed source material.
This can be especially useful when wanting to dial back the harmonic content, dynamic range reduction, and transient squashing from more extreme compressor settings.
The threshold is variable from 0dBu to +24dBu, with a gain reduction LED illuminating when the signal passes the threshold. However, the Color Comp also introduces audible non-linear harmonic content even with just a touch of gain reduction – as such, we highly recommend listening to the Color Comp engaged even when no gain reduction is visible, in order to discern the amount of tonality that it introduces.
The pleasing nature of this harmonic content will become even more apparent as the compressor settings become more extreme.
The release is variable from 100mS to 1.5S.
By dialing in higher ratios and faster releases it is possible to get the color comp to actively “pump” with the attacks, whereas with slower release times it will operate in a much smoother manner.
Lastly, the color comp has 20dB of Class-A makeup gain.
This is not only useful for level-matching the before and after compression signals, but also for driving the interstage transformers found in the Super Silk section for even greater harmonic enhancements.

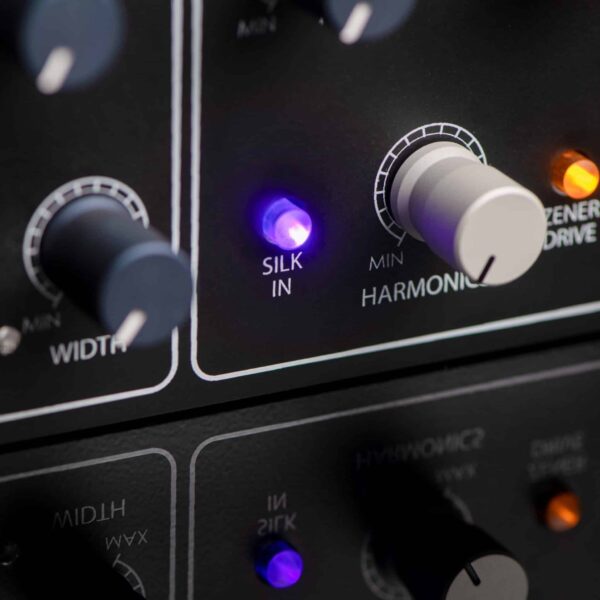

Control Harmonics Like Never Before with Super Silk
Introduced nearly twenty years ago, the Silk circuit has long been a favorite for Rupert Neve Designs users. First available as a simple on/off switch, then with selectable Red and Blue modes and the variable.

Texture control, Silk exists to enhance and control even and odd order harmonic content in any source material.
Super Silk is the latest advancement to this beloved technology: featuring independent Red, Blue, Harmonics and Zener Drive controls, harmonic manipulation is taken to a whole new level with the MBT. Historically, Silk was always applied to a unit’s output transformers. But when designing the MBT, a need was felt to offer even greater control and flexibility – therefore, Super Silk also includes an extra set of transformers to further expand the possibilities of this much-loved circuit. This design provides a way to drive into Super Silk for more dynamic saturation and transient clipping, while also being able to attenuate the signal for proper gain staging after Super Silk by using the Output Trim.
Silk Red accentuates harmonics in the upper mid and high frequencies, adding sparkle and sheen. Silk Blue accentuates harmonics in the low & low mid frequencies, creating more depth and weight. The Harmonics control increases the overall musical harmonic content by saturating the MBT’s custom interstage transformers; this setting will interact with the settings for both Silk Blue and Silk Red, so experimentation is encouraged to find new blends and balances.
Lastly, the switchable Zener Drive is a diode-based asymmetrical soft clip circuit that introduces mostly odd order harmonic content as the signal approaches the edge of the MBT’s headroom to achieve a more aggressive tonality.

Drive and Control Levels with I/O Amplifiers
To maintain optimal gain staging through the MBT, fully drive the interstage transformers, and accurately match the pre/post signals, the MBT includes Class-A input and output amplifiers to manage all levels.
The output amplifiers feed Rupert Neve Designs’ custom output transformers for line balancing and isolation.

FEATURES

• Built around Rupert Neve’s Class-A, Transformer Coupled Signal Paths
• Revitalize mono or stereo tracks, stems and mixes with a suite of new controls
• Add that missing weight and power with our new Super Silk circuit
• Add dynamic character with the opto-based Color Comp
• Quickly adjust tone with the gentle and musical LF & HF shelves
• Use the newly designed Width section to create dimension without losing focus
• Drive and level-match the interstage transformers with the I/O amplifiers
