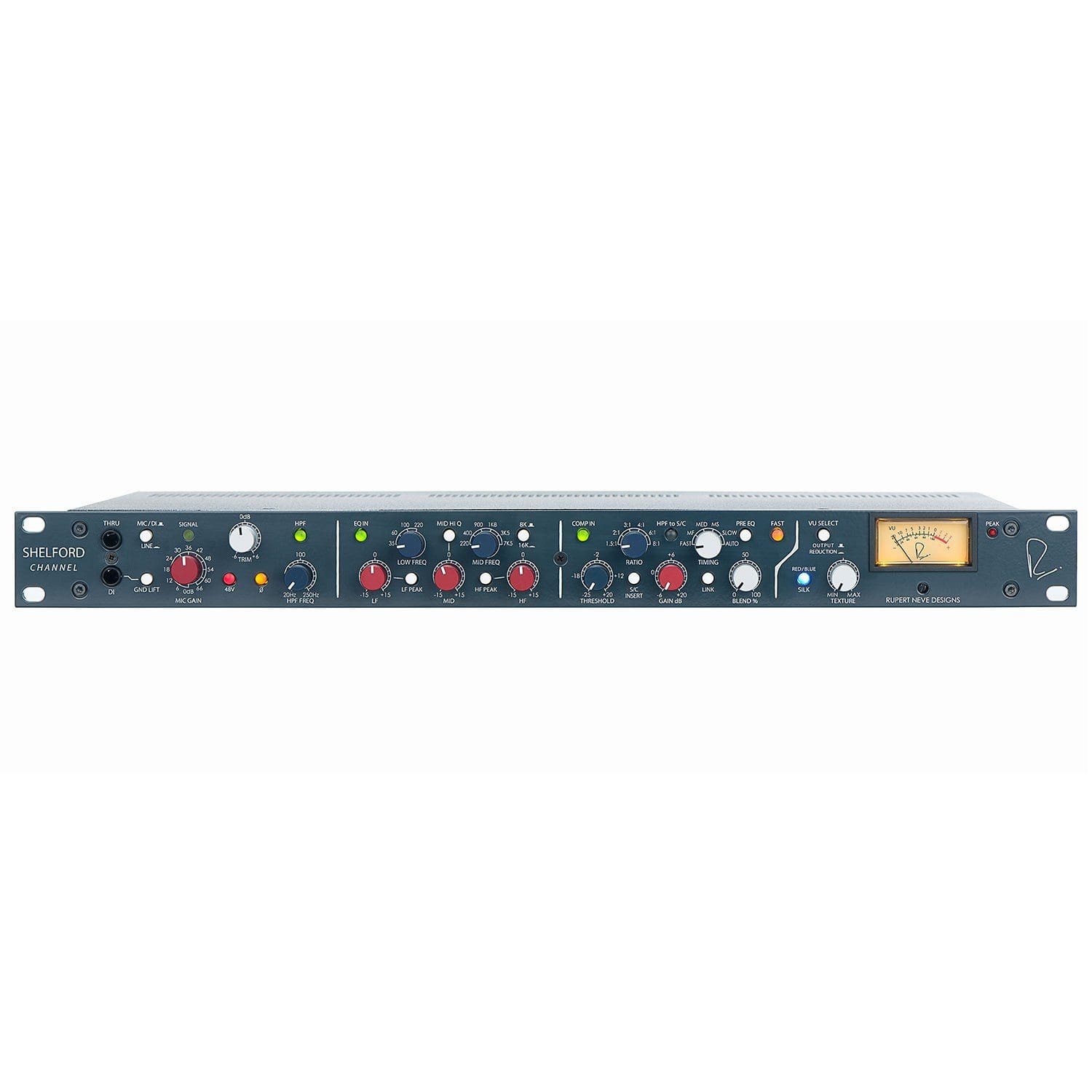

Rupert Neve Designs Shelford Channel – Complete Channel Strip with Legendary Sound

The Rupert Neve Designs Shelford Channel is the ultimate channel strip, bringing together the best of Rupert Neve’s legendary designs. Featuring a transformer-based preamp, inductor EQ elements from the iconic 1066 and 1073 designs, and a diode bridge compressor based on the classic 2254, the Shelford Channel is the pinnacle of audio engineering. This versatile unit combines all of Neve’s best innovations, offering a premium solution for achieving professional-grade recordings and mixing.

Overview

The Shelford Channel brings Rupert Neve’s legendary transformer-based preamp, DI, inductor EQ, and diode bridge compressor into a single, compact unit. Known as the “best of Rupert Neve,” this channel strip unites his iconic designs, offering unparalleled sound quality and functionality. Perfect for both studio and live environments, the Shelford Channel is engineered to deliver exceptional sonic performance, capturing every detail and nuance of your sound.

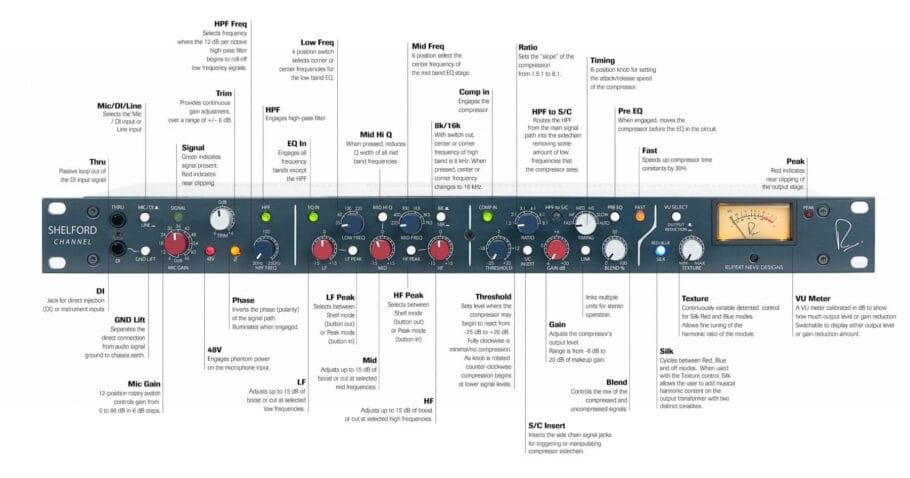

Key Features:

• Transformer Gain Preamp: Equipped with Rupert Neve’s renowned transformer-based preamp for rich, warm sound.
• DI Input and Thru: For instrument-level sources, offering clean, natural DI recordings with incredible clarity.
• 48V Phantom Power and Polarity Switchable: Full phantom power with the ability to invert phase for flexible microphone setups.
• Tunable Low-Cut Filter (20Hz – 250Hz): Adjust the low frequencies to ensure clarity and focus in your recordings.
• 3-Band Inductor EQ: Parametric EQ with depths for different frequencies and switchable Q factors, plus a treble control for high-end brightness.
• Diode Bridge Compressor: Adjustable threshold, ratio, gain, and timing, along with a blend function for parallel compression.
• Compressor Link and Pre-EQ Option: Link multiple units for stereo compression or apply EQ before compression for creative control.
• Silk Function (Red, Blue): Add tonal warmth and character with an infinitely variable Silk function, inspired by Neve’s iconic designs.
• VU Meter: Shows output levels and gain reduction for precise monitoring of your signal.
• Internal Power Supply: Automatically switches from 100 to 240V AC, ensuring compatibility worldwide.
• 19”/1U Format: Designed to fit in any standard 19” rack with a convenient 1U form factor.

Technical Specifications:

• Format: 19”/1U
• Input: Transformer gain preamp with DI input and through
• EQ: 3-band with parametric depths (35, 60, 100, 220 Hz), parametric centers (220, 400, 900, 1800, 3500, 7500 Hz) and switchable Q
• Compressor: Diode bridge with adjustable threshold (-25 to +20), ratio (1.5:1, 2:1, 3:1, 4:1, 8:1), gain (-6 to +20 dB), and timing options
• Silk Function: Red and Blue, infinitely variable
• Phantom Power: 48V
• Power Supply: Internal, auto-switching between 100-240V AC, 50-60 Hz
• VU Meter: Output level and gain reduction meter

Why Choose the Shelford Channel?

The Shelford Channel is the perfect solution for those seeking classic Rupert Neve sound and modern versatility. Whether you are recording vocals, instruments, or mixing, the Shelford Channel’s transformer preamp, inductor EQ, and high-performance diode bridge compressor will enhance your recordings with warmth, depth, and clarity. Its compact 1U design and incredible range of features make it a must-have for professional studios and musicians alike.
